How to Remove the E38 BMW Airbag Light
If the airbag light has come on in your E38 BMW, it's important to take it seriously. The airbag light isn't just an inconvenience - it's a warning that something in your airbag system needs attention. This guide covers what causes the light, how to diagnose the fault, and how to reset it correctly once the underlying issue is fixed.
Important Safety Warning Before You Start
Before attempting any work on your airbag system, disconnect the battery and wait at least 15 to 30 minutes for the capacitors to fully discharge. Airbag systems store electrical charge even after the battery is disconnected - working on live components can trigger accidental deployment, which causes serious injury. If you are not confident working around airbag components, this is not a DIY job. Take your vehicle to a qualified BMW specialist.
It is also important to understand that resetting the airbag light without fixing the underlying fault is dangerous. Your airbag system may not deploy correctly in a collision if the root cause is left unaddressed. Always diagnose and repair the fault before clearing the light.

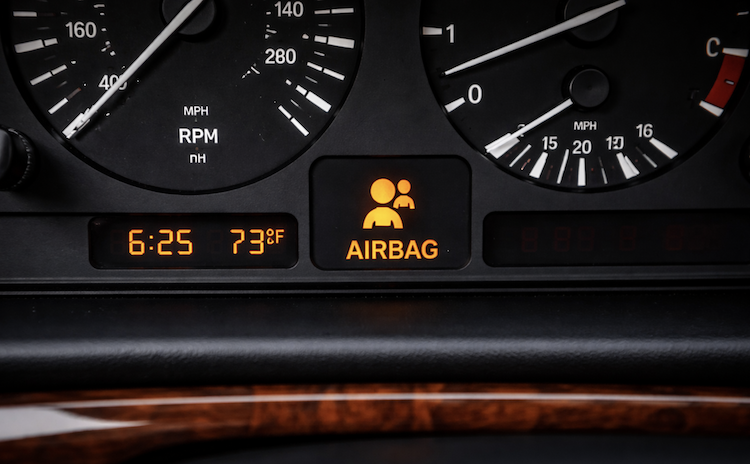

What Does the BMW E38 Airbag Light Mean?
The airbag light on your E38 BMW indicates that the airbag control module has detected a fault somewhere in the system. This could be a faulty sensor, a wiring issue, a problem with the airbag control module itself, or a triggered pretensioner after a minor impact. In some cases it also comes on after a battery change or replacement.
The light does not necessarily mean the airbag has deployed or is about to. It means the system has flagged a fault and needs to be diagnosed before the airbag can be relied upon to function correctly in an emergency.
Common Causes of the E38 Airbag Light
Clock Spring Failure
The clock spring, also called the spiral cable, is one of the most common E38-specific airbag faults. It sits inside the steering column and maintains the electrical connection to the driver's airbag as the wheel turns. When it fails, the airbag light comes on and you will often lose horn function and cruise control at the same time. This is a strong indicator that the clock spring is the cause.
Corroded Wiring Under the Front Seats
This is an E38-specific issue that many generic scan tools miss. Moisture gets under the front seats and corrodes the airbag wiring connectors over time. It is one of the most common causes we see on older E38s and is often misdiagnosed without a BMW-specific scanner.
Seat Belt Pretensioner Fault
The seat belt pretensioners are part of the airbag system and can trigger a fault code after even a minor impact. If the car has been in a small collision at any point in its history, this is worth checking early in the diagnosis process.
Faulty Airbag Control Module
On older E38s, the airbag control module can fail outright or develop internal faults. This typically requires replacement and coding to the vehicle by a specialist.
Battery Replacement
A common trigger on the E38. Disconnecting the battery can cause the airbag control module to log a fault. In many cases this clears after a proper reset, but the fault code still needs to be read and cleared with a compatible scanner rather than just disconnecting the battery again.
Faulty Crash Sensor
The E38 has crash sensors at the front of the vehicle. If one develops a fault or is damaged, the airbag light will come on. These need to be replaced and the system rescanned to confirm the fault is resolved.
E38 BMW Airbag Fault Codes and What They Mean
When you scan the system, you will see fault codes stored in the airbag control module. Here are the most common E38 airbag fault codes:
| Fault Code | Meaning |
|---|---|
| 7C | Seat belt pretensioner fault |
| 7D | Driver airbag squib fault |
| 7E | Passenger airbag squib fault |
| 7F | Airbag control module fault |
| 80 | Crash sensor fault |
| 93 | Clock spring / spiral cable fault |
Step-by-Step: How to Diagnose and Reset the E38 Airbag Light
Step 1: Connect a BMW-Compatible Scanner
Plug a compatible scanner into the OBD2 diagnostic port, located under the dashboard on the driver's side. Access the airbag or SRS system module specifically - do not rely on a generic scan that only reads engine codes.
Step 2: Read and Record All Fault Codes
Read all stored fault codes and write them down before doing anything else. You need this information to identify which component is at fault.
Step 3: Inspect and Repair the Faulty Component
Use the fault codes to identify the affected component and inspect or replace it as needed. Common repairs include replacing the clock spring, repairing corroded wiring under the seats, or replacing a faulty sensor or pretensioner.
Step 4: Disconnect the Battery
Once the fault has been repaired, disconnect the battery and wait 15 to 30 minutes. This allows the capacitors to discharge and the system to reset.
Step 5: Reconnect and Clear the Fault Codes
Reconnect the battery, then use the scanner to clear the stored fault codes from the airbag control module.
Step 6: Rescan and Test
After clearing, rescan the system to confirm no fault codes remain. Take the car for a short drive and rescan again to confirm the light stays off. If it returns, the underlying fault has not been fully resolved.
How to Replace Airbag Sensors
If a fault with one of the airbag sensors is causing the light, the sensor will need to be replaced. This is not a straightforward DIY job on the E38. The sensor must be the correct specification for the vehicle, installed in the correct orientation, and the system must be rescanned and cleared after replacement to confirm the fault is resolved.
At Arrowhead Imports, we recommend leaving airbag sensor replacement to a qualified BMW technician. An incorrectly installed sensor can cause the airbag system to malfunction in a collision, which carries serious safety consequences. If you need BMW service in Peoria, AZ, our team can handle the diagnosis, replacement, and post-repair scanning correctly.
What Our Peoria BMW Technicians See Most Often
At Arrowhead Imports in Peoria, E38 airbag light issues are something our technicians have dealt with extensively. The most common cause we see is corroded wiring under the front seats. Moisture gets into the connector over time and triggers a fault that a generic scanner often misses entirely. It is an E38-specific issue that requires a BMW-compatible tool to diagnose correctly.
The second most common cause is clock spring failure. This is usually easy to identify because it comes with the loss of horn and cruise control at the same time as the airbag light. Both repairs are straightforward when diagnosed correctly and caught before the problem affects surrounding components.
If you are based in Peoria and need a professional auto repair in Peoria, AZ for your E38 BMW airbag light, our team can diagnose the fault accurately and fix it correctly the first time. Book an inspection here.
Also Read: How Much Does it Cost to Repair a BMW Transmission?
Frequently Asked Questions
Can I Drive With The Airbag Light On?
Technically, the car will still drive, but it is not recommended. With the airbag light on, the system has detected a fault and the airbag may not deploy correctly in a collision. For a safety-critical system like this, getting the fault diagnosed and repaired promptly is always the right call.
How Do I Reset The Airbag Light On A BMW E38?
The correct process is to first diagnose and repair the underlying fault using a BMW-compatible scanner, then disconnect the battery for 15 to 30 minutes, reconnect, and clear the stored fault codes with the scanner. Resetting without fixing the fault will cause the light to return.
What Causes The Airbag Light To Come On After A Battery Change?
Disconnecting the battery can cause the airbag control module to log a fault on the E38. In many cases this clears with a proper reset using a BMW-compatible scanner. If the light persists after resetting, there is likely an additional underlying fault that needs diagnosis.
Will Disconnecting The Battery Reset The Airbag Light?
Sometimes, but not reliably. Disconnecting the battery may temporarily clear the light, but if the underlying fault remains, the light will return. The correct approach is to read the fault codes first, repair the cause, and then clear the codes with a compatible scanner.
What Is The Most Common Cause Of The E38 Airbag Light?
On E38 BMWs specifically, corroded wiring under the front seats and clock spring failure are the two most frequent causes we see in our Peoria shop. Clock spring failure is usually identifiable because it also causes loss of horn and cruise control at the same time as the airbag light coming on.
